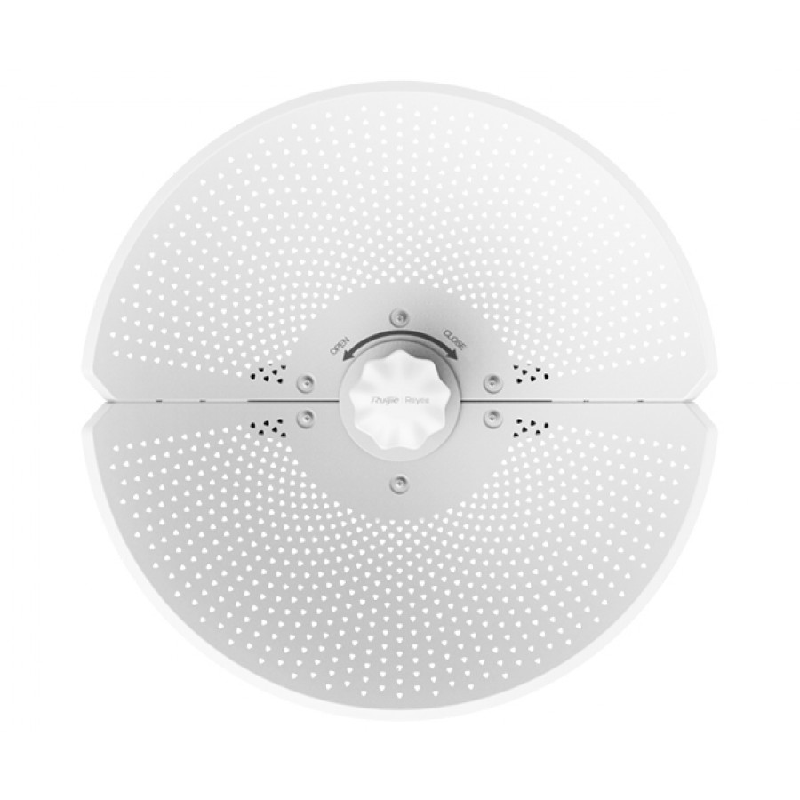

CPE des Ponts sans fil de la série RG-AirMetro 1 port FE PE IP65 PTP 15 km de distance de fonctionnement maximale


CPE des Ponts sans fil de la série RG-AirMetro 1 port FE PE IP65 PTP 15 km de distance de fonctionnement maximale



Demander un devis

  • 15 km Transmission: Delivers reliable wireless bridging at distances up to $15\text{ km}$ when used in a Point-to-Point (PTP) configuration.

  • 867 Mbps Throughput: Utilizes Wi-Fi 5 (802.11ac) and $2\times2$ MIMO technology on the $5\text{ GHz}$ band to ensure high-speed data transmission for video streams.

  • High-Gain Antenna: Features a built-in $23\text{ dBi}$ directional antenna with a narrow $9^{\circ}$ beamwidth, focusing the signal for maximum stability over long distances.

  • PTMP Scalability: Can serve as a remote node (CPE) for a central base station, supporting up to $32$ links in a single network deployment.

  • Harsh Environment Ready: Rated IP65 weatherproof and built to operate in extreme temperatures from $-40^{\circ}\text{C}$ to $+70^{\circ}\text{C}$.

  • Storm Resilience: Includes $6\text{ kV}$ surge protection and $\pm 24\text{ kV}$ ESD protection to prevent damage from lightning and electrical interference.

  • High Wind Stability: Engineered to survive wind speeds of up to $220\text{ km/h}$ ($137\text{ mph}$).

  • 30-Second Pairing: Features a one-touch WPS button that allows two units to pair automatically without needing a computer or complex configuration.

  • Alignment Guidance: Equipped with 3 signal strength LEDs on the back of the unit to help technicians manually align the bridge for the best possible signal.

  • Cloud-First Management: Remote monitoring and troubleshooting are available via the Ruijie Cloud App, which includes tools like Spectrum Scan to find the least congested channels.

  • AI Planning: Supports AI Heatmap tools to visualize coverage and expected signal levels before you even start the physical installation.

  • Ethernet Port: Equipped with one $10/100\text{ Mbps}$ (Fast Ethernet) port.

  • Power Supply: Powered by $24\text{V}$ Passive PoE (a PoE injector is included in the package).

  • Power Consumption: Highly efficient, consuming $\le 8\text{ W}$ of power during operation.

  • Compact Build: Measures $368.5 \times 271\text{ mm}$ and is designed for easy pole mounting with the included metal clamps.
